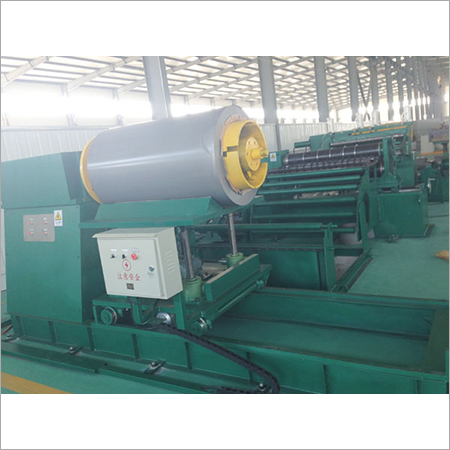

Silicon steel sheet longitudinal cutting machine

Name: Silicon steel sheet longitudinal cutting machine
Brand: CANGZHOU KENUO INTERNATIONAL CO., LTD.
Price: 10000 USD
Availability: InStock

Price 10000 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Silicon steel sheet longitudinal cutting machine Specification

Drive Motor
Servo drive for precise feeding

Product Type
Industrial Slitting Machine

General Use
Cutting and slitting silicon steel sheets for transformer and electrical industry

Material
Silicon steel sheet

Type
Silicon steel sheet longitudinal cutting machine

Capacity
8-12 tons per shift

Weight (kg)
Approx. 3500 kg

Computerized
Yes

Automatic
Fully automatic

Cutting Speed
0-120 m/min adjustable

Cutting Thickness
0.2-2.0 mm

Cutting Function
Longitudinal slitting and cutting

Cooling System
Air cooling

Drive Type
Electric motor-driven

Voltage
380V, 50Hz, 3 Phase

Dimension (L*W*H)
6500 mm x 2800 mm x 2100 mm

Feature
High-precision, automatic feeding, user-friendly interface, durable structure

Color
Blue & white (customizable)

Motor
15 kW AC Motor

Mechanical Precision
0.05 mm

Software Detail
PLC based automated system

Cutting Method
Rotary/rotational longitudinal slitting

Control System
Touch screen HMI PLC

Cutting Area
1200 mm max width

Cutting Material
Cold rolled & silicon steel sheets

Min. Slitting Width
30 mm

Noise Level
70 dB

Optional Accessories
Edge trimming, scrap winder, additional blade sets

Installation Requirement
Level concrete foundation

Operator Interface
Touchscreen digital display

Number of Slitting Blades
Up to 18 sets configurable

Safety Features
Emergency stop, protective covers, overload protection

Lubrication System
Centralized automatic lubrication

Recoiling System
Dual station automatic recoiler

Feeding System
Automatic coil feeder & uncoiler

Power Consumption
Approx. 25 kW

Max. Coil Weight
10,000 kg

Line Speed Adjustment
Frequency inverter controlled

Material Thickness Range
0.20 mm - 2.00 mm

Ambient Temperature
5C - 40C, non-condensing

Silicon steel sheet longitudinal cutting machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
60 Days

About Silicon steel sheet longitudinal cutting machine

Silicon steel sheet longitudinal cutting machine

Thickness of roll slitting silicon steel sheet or low carbon steel sheet 0.2~0.5mm
Width of the rolling slitting sheet 40~1250mm
Strip Burr: 0.02mm
Width tolerance of strip burr 0.2mm
Speed of slitting line: 0~70M/min
Decoiler drum standard diameter : 500mm
Recoiler drum standard diameter : 500mm
Max load capacity of Decoiler: 6T
Max load capacity of recoiler: 6T
Max activity diameter of decoiler: 530mm
Min activity diameter: 470mm
Max activity diameter of recoiler 510mm
Min activity diameter :470mm
Guide pressure device working pressure 0.3-06Mpa
Outside diameter of the spindle for the roll slitting machine 120mm
Lifting height :350mm
17V shape tray maximum load capacity of the lifting moving vehicle 6T
General motor power: 32KW
Decoiler,rolling cutting machine,recoiler AC motor driven by the frequency converter.
Total length 11m,width 5m,covering the area of 55 square meter.
Total weight : 11T
Working height level: 1M

Main construction

6Ton Hydraulic pressing decoiler
6Ton hydraulic pressing recoiler
Variable frequency roll slitting machine
Double pneumatic guide pressing device
6Ton new type electric feed-in and feed-out lifting vehicle
Electric control panel
Hydraulic station
Grinding machine
YG20 carbide scissors

The configuration of the sensor, length measuring device, intelligent digital display meter, the cutting length that required can be preset,(unit precision:0.1m) sound alarm when reaching the number.

Advanced Automation for Precision and Productivity

With fully automatic feeding, programmable slitting options, and servo drive technology, this machine delivers unmatched accuracy and speed. The intuitive touchscreen interface and PLC system streamline production management, ensuring precise coil handling and minimal material waste. Ideal for manufacturers demanding consistent quality and high throughput in silicon steel processing for electrical applications.

Robust Safety and Low-Noise Operation

Engineered with emergency stop functions, overload protection, and full protective covers, safety is paramount. The machine produces a noise level below 70 dB, providing a safer and more comfortable work environment for operators. Centralized lubrication extends machine life, while the air cooling system maintains optimal performance during continuous use.

FAQs of Silicon steel sheet longitudinal cutting machine:

Q: How does the automatic coil feeder and uncoiler system work?

A: The automatic coil feeder and uncoiler streamline material loading by automatically feeding silicon steel sheets into the machine. This reduces manual handling, enhances operational safety, and ensures a consistent and efficient workflow, particularly useful in high-volume production environments.

Q: What materials and thickness ranges can the machine cut?

A: This machine is designed to process cold rolled and silicon steel sheets with a thickness range of 0.20 mm to 2.00 mm. It supports coil widths up to 1200 mm and is ideal for applications in the transformer and electrical component industries.

Q: When is the centralized automatic lubrication system activated?

A: The centralized automatic lubrication system operates at programmed intervals or as required during continuous operation. This ensures all moving parts remain well-lubricated, reducing maintenance frequency and prolonging the longevity of key machine components.

Q: Where is the silicon steel sheet longitudinal cutting machine typically installed?

A: The machine is generally installed in industrial facilities specializing in sheet metal processing, particularly in transformer manufacturing plants and electrical equipment production sites. It requires a stable, level concrete foundation for optimal performance.

Q: What are the primary benefits of the dual station automatic recoiler?

A: The dual station automatic recoiler allows for continuous operation by swiftly switching between recoiling stations without stopping the line. This minimizes downtime, enhances productivity, and ensures efficient winding of slit strips for further processing or shipment.

Q: How does the operator interface enhance usability?

A: The machines touchscreen digital display with PLC-based control offers a user-friendly interface. Operators can easily adjust settings, monitor operations, and quickly respond to alerts or changes in production demands, ensuring precise and reliable performance.

Q: What optional accessories are available to expand functionality?

A: Optional accessories include edge trimming devices, scrap winders for managing off-cuts, and additional blade sets for varying slitting requirements. These accessories allow for greater flexibility to meet specific production needs and improve overall efficiency.
