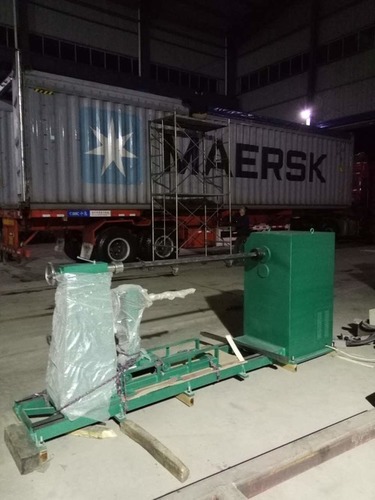

Horizontal Transformer Winding Machine

Usage of the series winding machine is suitable for high and low voltage transformer coil winding. Product composition and structural characteristics of the device has the main chassis, rails and cabinet components. Structural features are as follows: 1, the winding machine is provided in the upper portion of the mechanical transmission bedside cabinet, electrical parts installed in the operating side of the headstock. Toggle double spindle gear to achieve high speed, low change by shift lever. 2, the winding machine double speed, mechanical governor and inverter variable speed. There are three mechanical adjustment shift lever position: low position, neutral position, high-speed bit; electronically reversible counting the number of turns is set to automatically stop. 3, reversible electronic counting machine, equipped with brakes, to prevent reverse winding stops to ensure automatic counting does not produce errors. two. High technical parameters Model parameters RX-003 RX-1 Winder Winder center 850mm 850mm diameter faceplate 200 mm 200 mm tailstock tailstock adjustment range 600-1500mm no maximum torque 500N.M 1000N.M motor power 2.2 KW 4 KW speed range of 0 ~ 260 r / min 0 ~ 220 r / min.
