Vacuum transformer oil purifier

Name: Vacuum transformer oil purifier
Brand: CANGZHOU KENUO INTERNATIONAL CO., LTD.
Price: 10000 USD
Availability: InStock

Price 10000 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

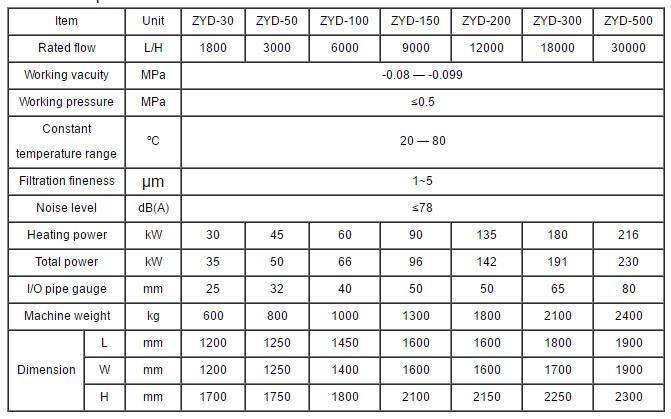

Vacuum transformer oil purifier Specification

Power Source
Electric

Condition
New

Accuracy
1C

Heating Method
Electric Heating

Heating Capacity
45 kW

Control Mode
Automatic/Manual

Type
Vacuum Transformer Oil Purifier

Model
ZJA-10

External Size
1800 mm x 1200 mm x 1900 mm

Volume
600 Liters/hour

Temperature Range
20C to 80C adjustable

Material
Carbon Steel / Stainless Steel

Dimension (L*W*H)
1800 mm x 1200 mm x 1900 mm

Power
45 kW

Voltage
380 V / 50 Hz (customizable)

Surface Finish
Powder Coated

Gas Content After Purification
0.1%

Water Content After Purification
3 ppm

Ultimate Vacuum
5 Pa

Oil Filtration Precision
1 micron

Oil Outlet Pressure
0.4 MPa

Working Vacuum Degree
-0.08 MPa

Protection Functions
Overload, Overheat, Phase Sequence Protection

Mobility
Mounted on wheels for portable use

Flow Rate
6000 L/h

Operation Noise
70 dB

Oil Dielectric Strength After Purification
75 kV

Working Environment Temperature
-10C to +50C

Filter Stages
Three-stage precision filtration

Vacuum transformer oil purifier Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Day

Delivery Time
60 Days

About Vacuum transformer oil purifier

Main features of vacuum transformer oil purifier

Double-stage, high vacuum pressure and high flow rate
Adopts Japanese 3D flash distillation technique, better degassing & dehydrating efficiency.
Precise fine multi-stage filtration
Automatic pressure protection, automatic constant temperature control, automatic oil level control
Low noise level, simple operation and maintenance

Superior Filtration Performance

Equipped with a three-stage precision filtration system, the ZJA-10 removes particulates down to 1 micron. It ensures that contaminantssolid, gaseous, or aqueousare effectively eliminated, enhancing the life and efficiency of transformer lubricant. Post-filtration, the oil achieves a remarkable cleanliness level, ensuring operational safety and performance in crucial power equipment.

Versatile and User-Friendly Operation

This oil purifier is designed for both manual and automatic control, accommodating a range of operational preferences and applications. Its mobility, ensured by caster wheels, allows easy movement across workshop floors or on-site power stations for convenient use. Adjustable temperature and customizable voltage options cater to various working conditions and client specifications.

Safety, Durability, and Efficiency Combined

Safety features like overload, overheat, and phase sequence protection ensure reliable operation and safeguard against mishaps. Constructed from robust carbon steel or stainless steel and sporting a powder-coated surface finish, the ZJA-10 guarantees durability and resistance to harsh environments. Its high throughput makes it ideal for continuous or large-volume purification tasks.

FAQs of Vacuum transformer oil purifier:

Q: How does the ZJA-10 vacuum transformer oil purifier remove water and gas from transformer oil?

A: The ZJA-10 employs a powerful vacuum system with a working vacuum degree of -0.08 MPa and an ultimate vacuum of 5 Pa. This environment enables efficient extraction of moisture and gases from the oil. Combined with three-stage precision filtration (down to 1 micron), it reduces water content to 3 ppm and gas content to 0.1%.

Q: What are the main benefits of using this oil purification system?

A: Utilizing the ZJA-10 vacuum oil purifier significantly enhances oil dielectric strength (75 kV), prolongs transformer lifespan, and reduces the risk of failure caused by moisture, particulate, and air contamination. It delivers cleaner, drier, and more reliable oil, supporting safe and efficient transformer operation.

Q: When should I use the ZJA-10 oil purifier for my transformer maintenance routine?

A: It is recommended to use the ZJA-10 during regular transformer maintenance schedules or whenever oil analysis reveals increased water, gas, or impurity levels. Using this purifier before commissioning, during scheduled maintenance, or after equipment exposure to moisture ensures optimal insulation and equipment longevity.

Q: Where can this oil purifier be operated, considering environmental conditions?

A: The ZJA-10 is designed for diverse environments with a working temperature range of -10C to +50C. Its powder-coated carbon steel or stainless steel body enhances durability for indoor or outdoor use, while its portable wheels facilitate mobility across various locations.

Q: What is the process to operate the ZJA-10 oil purifier?

A: The ZJA-10 can be operated in manual or automatic modes. Set the desired parameters, adjust the temperature (20C to 80C), and connect the input/output hoses. Once powered by an electric source (customizable voltage, standard 380V/50Hz), activate the vacuum system and begin filtration. Advanced safety features ensure secure, reliable operation throughout the process.

Q: What are the usage limitations or installation requirements for the ZJA-10?

A: The ZJA-10 requires stable electric power (380V/50Hz or as customized) and level ground for safe operation. Ensure proper ventilation when used indoors. Due to its size (1800 mm x 1200 mm x 1900 mm), adequate space is needed for easy maneuvering and maintenance access.

Q: How does the filtration accuracy of 1 micron improve the purified oil quality?

A: Filtration to 1 micron removes virtually all particulate contaminants from transformer oil, which is crucial for maintaining high dielectric strength and ensuring insulation integrity. This high level of purification contributes to reliable transformer performance and reduces maintenance frequency.
