Multi-hole Horizontal cutting machine

Name: Multi-hole Horizontal cutting machine
Brand: CANGZHOU KENUO INTERNATIONAL CO., LTD.
Price: 10000 USD
Availability: InStock

Price 10000 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Multi-hole Horizontal cutting machine Specification

Drive Motor
Servo Motor

Product Type
Multi-hole Horizontal cutting machine

General Use
Sheet and plate metal cutting

Material
Mild steel, Stainless steel, Aluminum

Type
Horizontal Cutting Machine

Capacity
Up to 8 holes per stroke

Weight (kg)
1850 kg

Computerized
Yes

Automatic
Fully Automatic

Cutting Speed
0-6000 mm/min

Cutting Thickness
2 mm - 20 mm

Cutting Function
Multi-hole simultaneous cutting

Cooling System
Water-cooled spindle

Drive Type
Servo Motor Drive

Voltage
380V/50Hz

Dimension (L*W*H)
3600 mm x 1700 mm x 1600 mm

Feature
High precision horizontal cutting

Color
Blue & White

Motor
5.5 kW main drive motor

Mechanical Precision
0.2 mm

Software Detail
CNC Controller with user-friendly interface

Cutting Method
Rotary/oscillating blade

Control System
PLC based control system

Cutting Area
1200 mm x 2500 mm

Cutting Material
Metal Sheet, Alloy Sheet

Blade Type
High-speed steel carbide tipped

Lubrication System
Automatic centralized lubrication

Operator Panel
Touchscreen HMI with menu navigation

Noise Level
75 dB

Safety Features
Emergency stop, Enclosed guards, Overload protection

Power Consumption
Average 6 kW/hour

Table Material
Anti-rust coated steel platform

Max Input Power
8.5 kW

Finish Quality
Smooth & burr-free edges

Air Pressure Requirement
0.6-0.8 MPa

Transport Mode
Heavy-duty locking castors

Multi-hole Horizontal cutting machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
60 Days

About Multi-hole Horizontal cutting machine

Multi-hole Horizontal cutting machine

Model

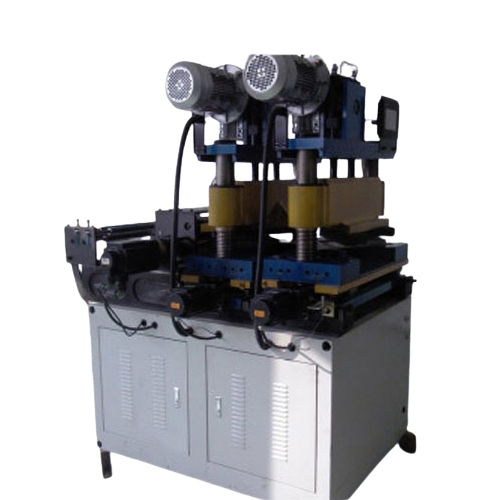

HJ-3002B Multi-hole Horizontal cutting machine
Model:HJ-2002/3002/5002-B

Introduction and Usage

This machine is mainly used for straight cutting&punching silicon steel multi-holes of lamination for transformer or reactors.

Specification

Cutting length:1mm-99999mm
Shearing thickness:0.8-4.0mm
The shearing precision:+-0.02mm
The shearing angle:Max0.025 degrees
Cutting burr height:Max0.02mm
Punching burr height:Max0.03mm
shear speed:1-100 pieces per minute

Characteristics

Cutting power:adopts domestic famous brand inverter motor,high speed,low noise,long life.
Feeding power:adopts big torque AC servo motor,quick response,high precious positioning,low noise,small thermal braking,long life.
Rail positioning:step motor dring,ball screw&linear guide transmitting,central positioning, quick and precious.
Motion control:by advanced PLC,HMI operation,simple and convenient.
Lamination collecting:transmitting bell plus unloading rack.
Life assurance:Imported world famous linear guide and ball screw,high precious milling parts and high precision assembly,extend life of the machine.

Precision Cutting for Demanding Applications

This fully automated horizontal cutting machine ensures repeatable, high-quality results for a wide range of metals. The stable anti-rust steel table, coupled with servo motor drive and 0.2 mm mechanical precision, guarantees each operation meets industry specifications, making it ideal for manufacturing, fabrication, and metalworking settings.

Smart Features and Intuitive Operation

Equipped with a modern CNC controller, touchscreen HMI, and PLC-based control, operators easily set up multi-hole patterns and cutting parameters. The integrated automatic lubrication system and enclosed guards enhance both longevity and safety, while heavy-duty locking castors provide effortless transport and stability during operation.

Efficient and Safe Performance

With an average power consumption of 6 kW/hour and a maximum input of 8.5 kW, the machine balances power and efficiency. Incorporating overload protection, emergency stops, and a water-cooled spindle, it is designed for long shifts and rigorous demands, ensuring smooth workflow with minimal need for intervention.

FAQs of Multi-hole Horizontal cutting machine:

Q: How does the machine ensure smooth and burr-free edges during cutting?

A: The machine utilizes high-speed steel carbide-tipped blades with a rotary or oscillating cutting method, combined with a water-cooled spindle. These features ensure precise, smooth cuts with burr-free edges across various metals such as mild steel, stainless steel, and aluminum.

Q: What safety features are incorporated in the Multi-hole Horizontal Cutting Machine?

A: This machine includes an emergency stop button, enclosed safety guards, and overload protection as part of its safety system. These measures provide comprehensive protection for operators during metal cutting operations.

Q: What is the process for setting up and operating this cutting machine?

A: Setup involves connecting air supply (0.6-0.8 MPa), electrical power at 380V/50Hz, and initializing the CNC controller via the touchscreen HMI. Operators select cutting parameters and patterns using a user-friendly menu navigation, then monitor performance through the PLC-based system, while the automatic lubrication and cooling systems operate in the background.

Q: Where is this cutting machine commonly used?

A: This machine is widely utilized in sheet and plate metal processing sectors, including fabrication workshops, manufacturing plants, and metalworking industriesespecially where efficient, simultaneous multi-hole cutting and high precision are critical.

Q: What materials and thickness ranges can the machine handle?

A: It effectively cuts a variety of sheet metals such as mild steel, stainless steel, and aluminum in thicknesses ranging from 2 mm to 20 mm. This versatility makes it suitable for diverse metal cutting needs.

Q: When is it beneficial to use a fully automatic, CNC-controlled cutter like this?

A: A fully automatic CNC-controlled cutting machine is ideal when high-volume, repetitive, or complex cutting operations are needed, notably for applications requiring multiple holes per stroke with consistent precision, minimal manual intervention, and enhanced safety.
